Image panel

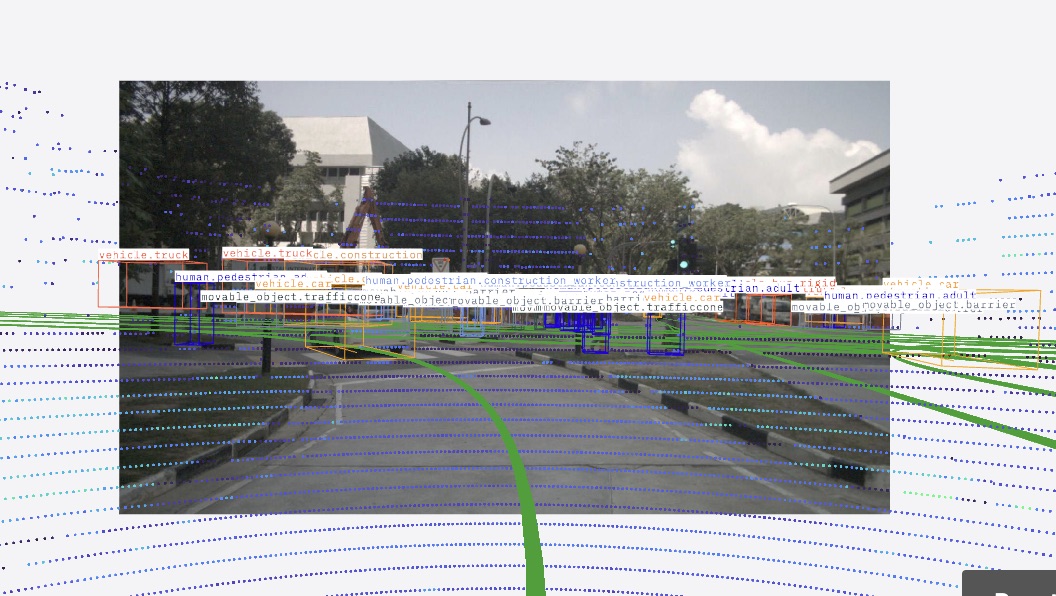

Display raw and compressed images, as well as compressed videos, with 2D annotations like text labels, circles, and points. Superimpose 3D markers for additional context.

Supported encodings

Raw images	Compressed images	Compressed videos
8UC1	webp	h264
8UC3	jpeg	h265 (HEVC)
16UC1	jpg	vp9
32FC1	png	av1
bayer_bggr8	avif
bayer_gbrg8
bayer_grbg8
bayer_rggb8
bgr8
bgra8
mono8
mono16
nv12
rgb8
rgba8
uyvy or yuv422
yuyv or yuv422_yuy2

Supported messages

To use this panel, your data source must provide messages conforming to 3D marker message types or one of the following supported schemas.

RawImage

framework	schema
ROS 1	sensor_msgs/Image
ROS 2	sensor_msgs/msg/Image
Custom	foxglove.RawImage

CompressedImage

framework	schema
ROS 1	sensor_msgs/CompressedImage
ROS 2	sensor_msgs/msg/CompressedImage
Custom	foxglove.CompressedImage

CompressedVideo

note

See the CompressedVideo schema documentation for information about how to correctly encode video messages.

warning

Compressed video support is subject to hardware limitations and patent licensing, so not all encodings may be supported on all platforms. See more about H.265 support, VP9 support, and AV1 support.

framework	schema
ROS 1	foxglove_msgs/CompressedVideo
ROS 2	foxglove_msgs/msg/CompressedVideo
Custom	foxglove.CompressedVideo

CameraCalibration

Provide optional camera calibration data to render 3D entities in the Image panel, or render images in the 3D panel. Calibration data is not required to display ImageAnnotations since they use pixel coordinates.

Foxglove supports the following distortion models: plumb_bob, rational_polynomial, kannala_brandt, and fisheye62. The equidistant model is also supported when using ROS sensor_msgs/CameraInfo schema, where it is treated as equivalent to kannala_brandt.

note

Following ROS conventions, Foxglove treats a camera as uncalibrated when K[0] === 0. In this case, the image is rendered without applying camera calibration.

framework	schema
ROS 1	sensor_msgs/CameraInfo
ROS 2	sensor_msgs/msg/CameraInfo
Custom	foxglove.CameraCalibration

ImageAnnotations

framework	schema
ROS 1	visualization_msgs/ImageMarker
ROS 2	visualization_msgs/msg/ImageMarker
Custom	foxglove.ImageAnnotations

Hovering over an annotation displays a tooltip with the annotation's metadata. Individual annotations (CircleAnnotation, PointsAnnotation, TextAnnotation) can include their own metadata field. Per-annotation metadata is merged with the top-level ImageAnnotations metadata; when both contain the same key, the per-annotation value takes precedence.

SceneEntity

3D scene entities can be superimposed on images when a calibration topic is configured. See 3D panel scene entity docs for more details.

framework	schema
Custom	foxglove.SceneEntity
Custom	foxglove.SceneUpdate

Settings

General

field	description
Topic	Camera image or video topic to display
Calibration	Calibration topic to use for distortion and 3D markers
Sync timestamps	Enables timestamp synchronization for the image and its associated topics. See the dedicated section below for details.
Flip horizontal	Flip image across the vertical axis
Flip vertical	Flip image across the horizontal axis
Rotation	Amount of image rotation (0°, 90°, 180°, or 270°)
Color mode	Only supported for single-channel images: mono8, 8UC1, mono16, 16UC1, and 32FC1. Color map – Pre-defined color palette Gradient – Smooth transition between two custom colors
Color map	Only shown if "Color mode" is set to "Color map". For mapping mono8, 8UC1, mono16, 16UC1, and 32FC1 image values to colors: "Turbo" (Google) "Rainbow" (RViz)
Gradient	Only shown if "Color mode" is set to "Gradient". Specifies gradient color values for mono8, 8UC1, mono16, 16UC1, and 32FC1 images.
Value min	Minimum scaling value for mono8, 8UC1, mono16, 16UC1, and 32FC1 images (default: 0).
Value max	Maximum scaling value for mono8, 8UC1, mono16, 16UC1, and 32FC1 images. Defaults: 255 for mono8/8UC1, 10000 for mono16/16UC1, and 1.0 for 32FC1. For 32FC1, NaN/Inf pixels are rendered as black.

Image overlays

Superimpose one or more image topics on top of the base image. You can add overlays, reorder them, toggle visibility, and adjust how each overlay is composited.

Overlay topics must use the same frame_id and image dimensions as the base image topic. Foxglove shows an error when an overlay does not match.

field	description
Topic	Image topic to composite on top of the base image
Opacity	Alpha strength for the overlay
Blend mode	How the overlay is composited onto the base image. Alpha uses standard alpha blending. Add adds overlay pixel values to the base image
Pixel alpha	Only supported for single-channel raw image topics. White is transparent makes pixels rendered as white fully transparent, which is useful for mask-style overlays
Schema	Message schema to use when a topic can be converted to multiple supported image schemas

Scene

field	description
Render stats	Display rendering performance statistics in panel corner
Background	Color of background behind the image
Label scale	Size of text labels
Ignore COLLADA <up_axis>	Ignore the <up_axis> tag in COLLADA files
Mesh up-axis	Direction of “up” when loading meshes (STL, OBJ) without orientation info ("Y-up", "Z-up")

Image annotations

2D image annotation marker topics to display.

Transforms

List of transform messages to display.

See the 3D panel docs for more information on possible settings.

Topics

List of 3D marker topics to superimpose on the image.

Custom layers

See the 3D panel docs for more information on possible settings.

Publish

Configure publishing settings for the Image panel.

note

The cursor hover publish feature uses different message schemas for ROS and non-ROS data sources.

The message types used for ROS and non-ROS data sources are:

Feature	Corresponding ROS message type	Foxglove message
Cursor click	geometry_msgs/PointStamped	foxglove.Point3InFrame
Cursor hover	geometry_msgs/PointStamped	foxglove.Point3InFrame

Field	Description
Click topic	Topic on which to publish pixel coordinates when clicking on the image (default: /foxglove/cursor/click).
Hover topic	Topic on which to publish pixel coordinates when hovering over the image (default: /foxglove/cursor/hover).

Controls and shortcuts

• Scroll – Zoom in and out
• Drag – Pan around the image
• 1 – Reset zoom and pan
• i – Show or hide the object inspector

Hover on the image to view the mouse coordinates and numeric value of a pixel. The same pixel will also be indicated on other Image panels displaying images with the same frame_id and pixel dimensions.

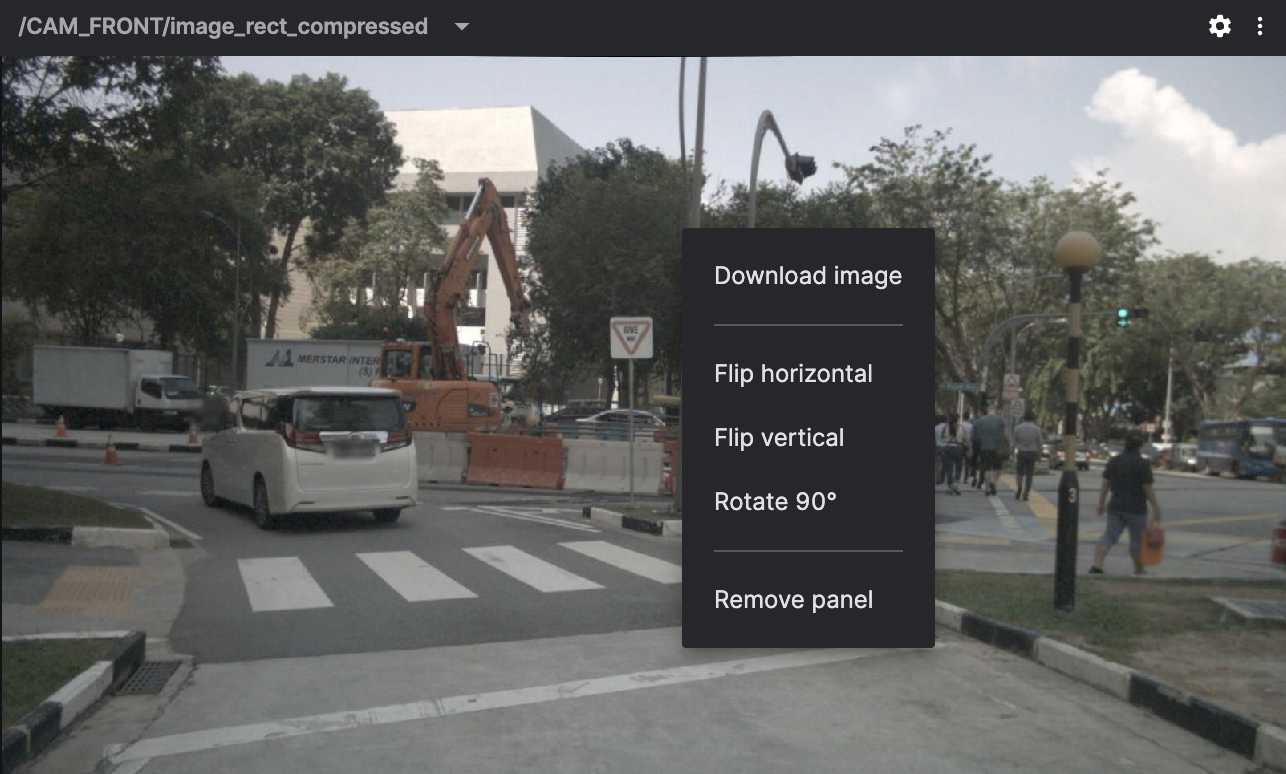

Right-click on the image to download it as a PNG file.

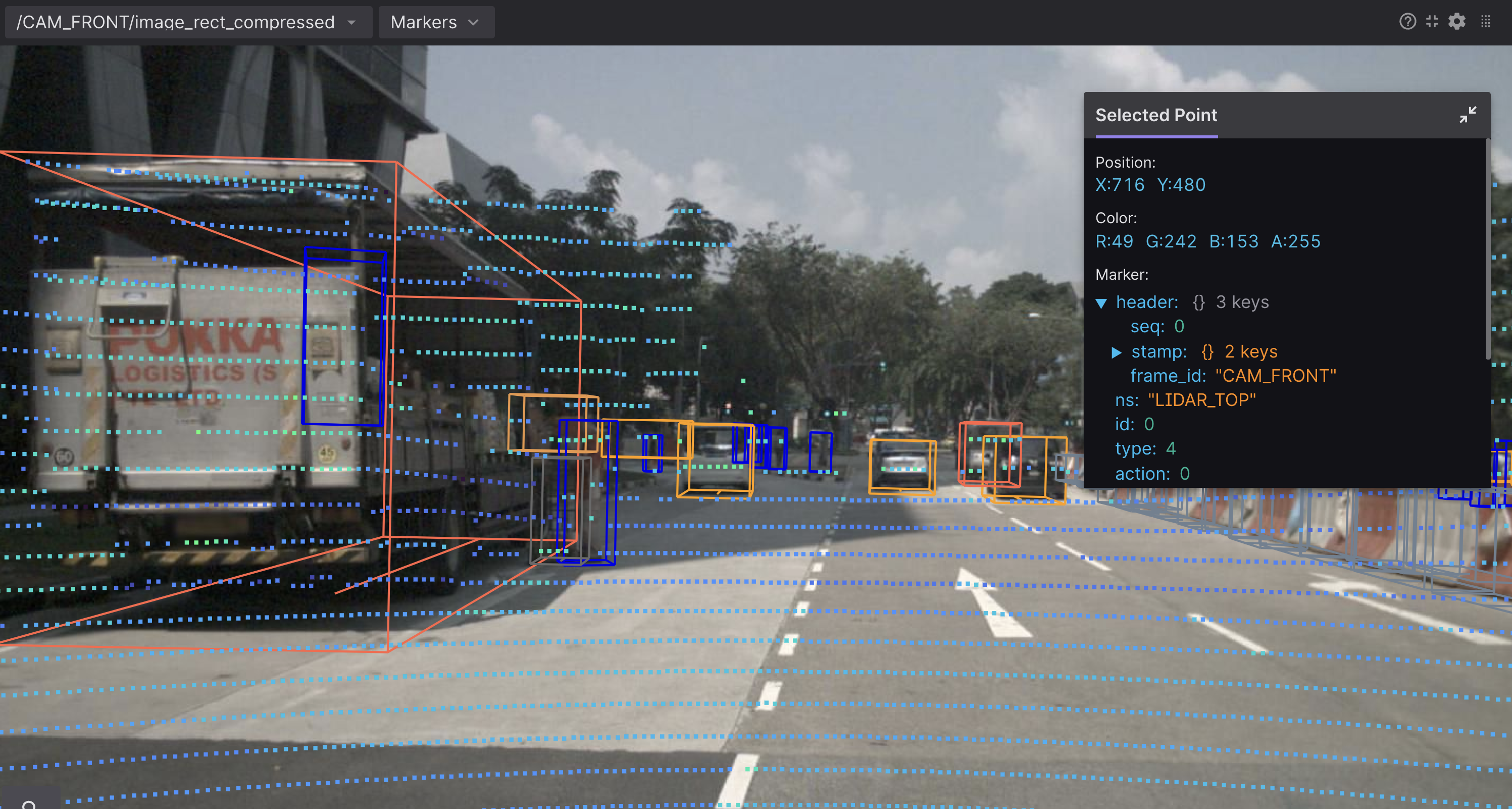

Click any displayed image marker to view its details.

Scroll to zoom, and drag to pan. Annotations will re-render on zoom to remain sharp.

Troubleshooting video delay

You may see errors for foxglove.CompressedVideo topics stating that the frame being displayed is delayed a number of milliseconds from the most recent frame. If you're seeing the delay grow during playback, then this could be due to the video decoder on your platform. Video decoding behavior can vary across platforms, and some platforms may experience delays while others do not. It is possible to configure your video stream to optimize for low-latency decoding, but it may be impossible to guarantee that a video stream can be decoded with zero latency on all platforms.

Some tips on how configure the video encoding to best achieve low-latency decoding:

• Use the BASELINE profile for h264 encoded streams. This profile is preferred because it does not support B frames. Profiles which support B frames may introduce decoding delay, even if the encoded stream doesn't actually contain B frames.
• Disable frame reordering on your encoder.
• Lower profile levels (level_idc) usually require smaller buffers, resulting in lower-latency decoding.
• If your encoder allows it, use a bitstream_restriction in the VUI parameters to limit the size of the buffer (max_dec_frame_buffering) and also disable frame reordering (max_num_reorder_frames).

If you see that the video delay increases significantly during playback that likely means that the video decoder can't keep up with your stream, and you'll want to reduce the number of your panels displaying video streams and/or check that your platform supports video acceleration. Read on to see more information.

System CPU load and power consumption may also contribute to decoding delays. Hardware-accelerated decoding is generally faster and more energy-efficient. Make sure to check that it is enabled.

These steps can help your platform achieve low-latency decoding, but there is no guarantee depending on the platform and device being used.

Checking video acceleration

You can check whether your platform supports hardware-accelerated video decoding by opening Google Chrome and entering chrome://gpu in the address bar. If you do not see Video Decode: Hardware accelerated or the Video Acceleration section is empty on this page, but you believe that it should be supported, then you may need to take additional platform-specific steps to enable it.

The desktop app uses Electron (based on Chromium), and should automatically use hardware acceleration when available. If you're seeing issues here, we recommend following the steps above to see if the same issue exists in Chrome. If so, there's a good chance it's affecting our application for the same reasons. We recommend getting things working in Chrome first, and if the desktop app is still having issues afterward please let us know and we'll look into it.

Enabling video acceleration

Tips for Foxglove web in Chromium browsers:

• Go to chrome://settings, search your settings for acceleration and ensure that the "Use graphics acceleration when available" toggle is enabled.
• Go to chrome://flags, search for video and ensure that "Hardware-accelerated video decode" is enabled.

MacOS:

• For web, significant performance gains have been observed when changing the graphics backend to use "Metal" in Chromium-based browsers. You can do this in about://flags.

On Linux:

• Note that Chrome/Chromium doesn't support video acceleration on Linux by default and custom Chrome/Chromium flags may need to be used to enable it with your GPU.
• Ensure that your graphics drivers are up-to-date and installed properly.

Timestamp synchronization

The Sync timestamps setting gates rendering on exact timestamp alignment across the image topic and its associated topics. When enabled, the panel buffers incoming messages and only renders a frame when every participating topic has a message with the same timestamp.

How it works

1. Enable Sync timestamps in the General settings section.
2. The primary image topic is always included in synchronization.
3. All visible ImageAnnotations topics are automatically included — there is no separate opt-out.
4. For 3D overlay topics, enable the Sync toggle in the topic's settings to include them.
5. At least one additional topic (a visible annotation or a Sync-enabled overlay) must participate alongside the image topic — otherwise there is nothing to match against.

The panel retains up to 250 unique timestamps in its synchronization buffer. If a match is not found within that window, the oldest timestamps are discarded. For best results, ensure your topics publish at the same rate and with aligned timestamps.

Calibration topics always use the most recently received message and do not participate in synchronization.

Timestamp extraction

Timestamps are extracted from header.stamp for ROS messages or the timestamp field for Foxglove messages — not log time. For scene updates and marker arrays, the timestamp of the first entity or marker in the message is used. For ImageAnnotations, the root-level timestamp is used; if absent, the timestamp of the first annotation (circles, points, or texts) is used.

What is not synchronized

Transforms and URDFs are never registered for synchronization. Transforms continue to build the transform tree normally, and all entities compute their position at the synced timestamp.
